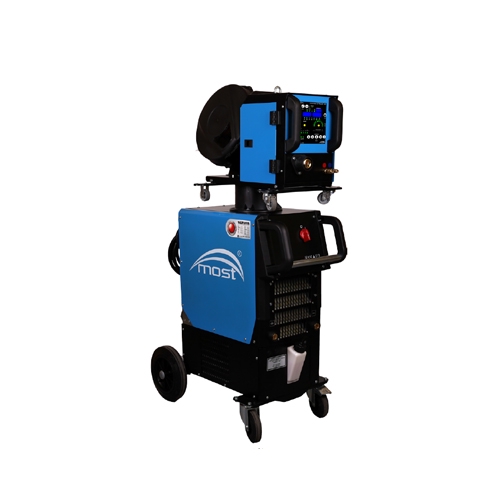

FANMIGi 5 PULSE are new inverter semi-automatic MIG/MAG welding machines for industrial applications.
Main advantages of FANMIG 5 PULSE devices:
- Ability to weld with pulse, double pulse, or short-circuit arc in the MIG/MAG method.
- MIG/MAG welding with synergic or manual settings, gouging, and MMA electrode welding.
- High welding current of 500A/60% and 420A/100% (MMA 400A/100%).
- Synergic programs for welding steel, stainless steel, or aluminum.
- Easy-to-use control panel, identical for both models.
- Powerful wire feed mechanism, type 37/19 rollers, feed speed 1-20 m/min.
- Memory for up to 99 programs.
| Model | FANMIG 5 PULSE | |
| Welding method | MIG/MAG | MMA |
| Power supply | 3x400 V / 50/60 Hz | |
| Welding current range | 20 A / 15.0 V - 500 A/39.0 V | 10 A / 20.4 V - 500 A / 40.0 V |
| Welding current at: |
420 A / 35.0 V (100% duty cycle) 500 A / 39.0 V (60% duty cycle) |
420 A / 26.8 V (100% duty cycle) 500 A / 30.0 V (60% duty cycle) |
| Current adjustment | Stepless | |
| Wire feed speed | 1 - 20 m/min | x |
| Torch cooling | Liquid | |
| Power source efficiency | 88% | |
| Idle power consumption | 25 W | |
| Enclosure protection class | IP23S | |
Double pulse (DP) welding programs available as an option (TOKEN).
Devices supplied with ground cable and gas hose, rollers 1.0-1.2 mm. Standard intermediate cable lengths 5 m, optional 1.2 m, 10 m, or 15 m.
Welding guns - optional. For high-performance MAG welding, we recommend a liquid-cooled MOST M6W torch (steel) or M6OSW (aluminum).
FANMIG 5 PULSE devices meet the requirements of the Ecodesign Directive 2009/125/EC and Regulation 2019/1784 (EU).
