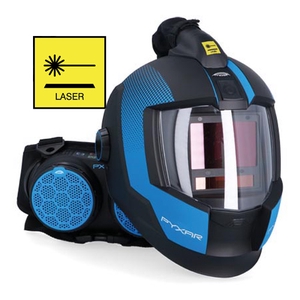

The MOST PYXAR AIR welding helmet, besides the advantages of the basic version, offers easy connection to the MOST PX-FLOW forced-air system, and with the laser YAG protective filter provides professional protection during manual laser welding. By using several different types of filters, the blower unit delivers clean and dry air to the user, ensuring respiratory protection at a high TH3 level.
\nApplication:
\n- \n
- all welding methods (MIG/MAG, TIG, MMA), and by pressing the GRIND button, it is suitable for grinding, \n
- plasma cutting, \n
- manual laser welding - protection classes in accordance with EN 207:2017: \n
| 900-1000 nm | \nDIR LB5 | \n
| 1000-1030 nm | \nDIR LB7 + M LB7Y | \n
| 1030-1400 nm | \nD LB7 + IR LB8 + M LB8Y | \n
| 1400-2500 nm | \nDIR LB5 | \n
| 2500-2800 nm | \nDIR LB4 | \n
| 2800-9000 nm | \nDIR LB5 | \n
| 9000-11500 nm | \nDI LB5 | \n
\n
Technical Data:
\n| Model | \nMOST PX-FLOW | \n
| Minimum airflow | \n179 l/min | \n
| Airflow | \nAdjustable 180-220 l/min | \n
| Filter types | \nP R SL or ABE1 P R SL | \n
| Standard battery | \nLithium-ion 7.4 V / 5200 mAh | \n
| Heavy-duty battery | \nLithium-ion 7.4 V / 7800 mAh \n | \n
| Standard battery charging | \n> 4-6 h | \n
| Heavy-duty battery charging | \n> 4-6 h | \n
| System operation time: full standard battery, minimum airflow, and new filter | \n\n > 10 h (with filter P R SL) \n> 6 h (with filter ABE1 P R SL) \n | \n
| System operation time: full heavy-duty battery, minimum airflow, and new filter | \n\n > 12 h (with filter P R SL) \n> 8 h (with filter ABE1 P R SL) \n | \n
| Low battery level signaling | \nVisual, audible, and vibrational alarm | \n
| Insufficient airflow signaling (below 180 l/min) | \nVisual, audible, and vibrational alarm | \n
| Weight (drive unit with standard battery and P R SL filter) | \n1173 g | \n
| Protection level according to EN12941 | \nTH 3 - highest level of protection | \n
\n
\n\n
\n
\nMatch PPE to welding method:
\n| \n | MIG/MAG Welding | \nTIG Welding | \nMMA Welding | \nLaser Welding | \n
| PYXAR MOST welding helmet | \n✓ | \n✓ | \n✓ | \n✓ | \n
\n
✓ - recommended for welding method (meets standards)
