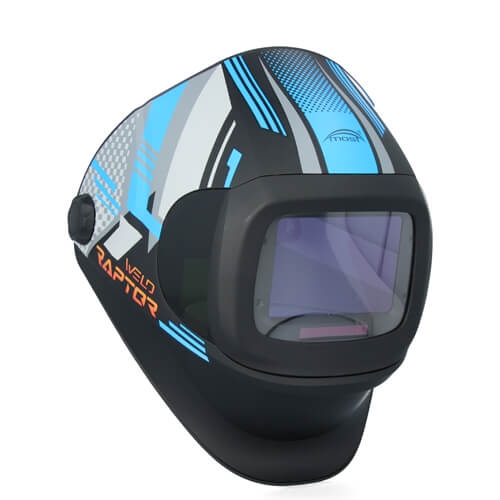

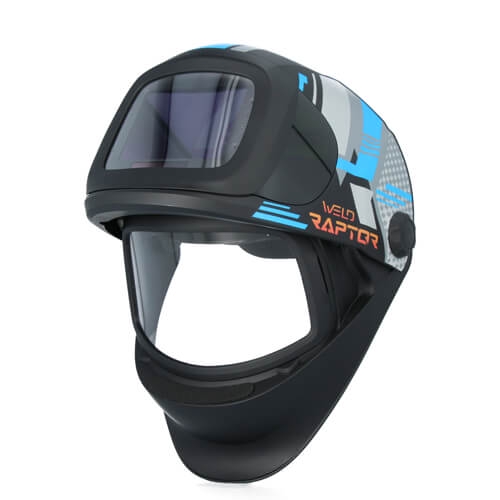

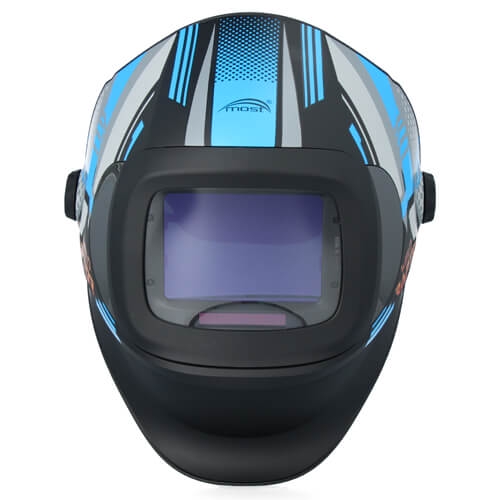

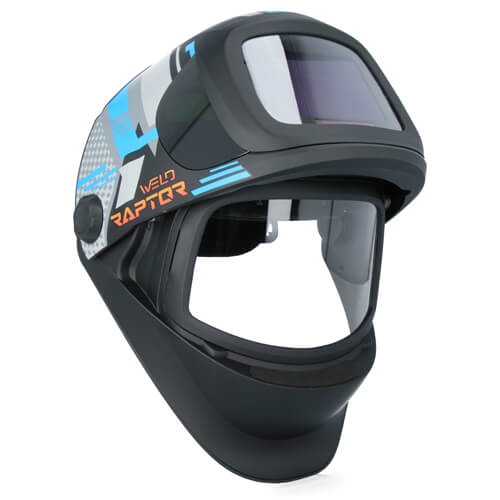

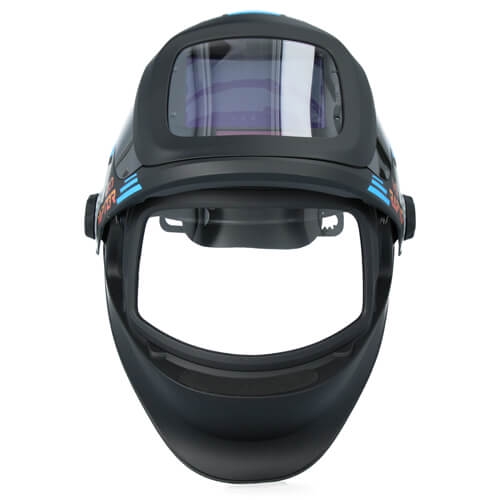

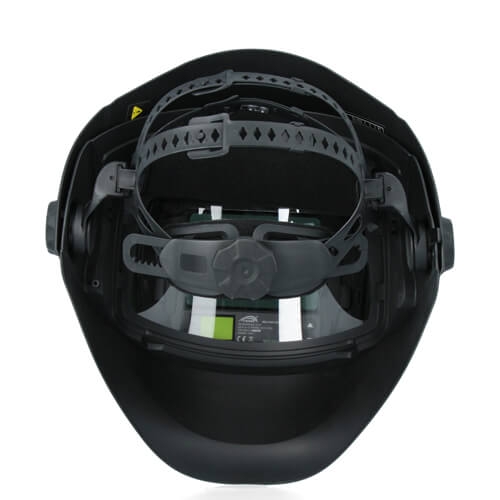

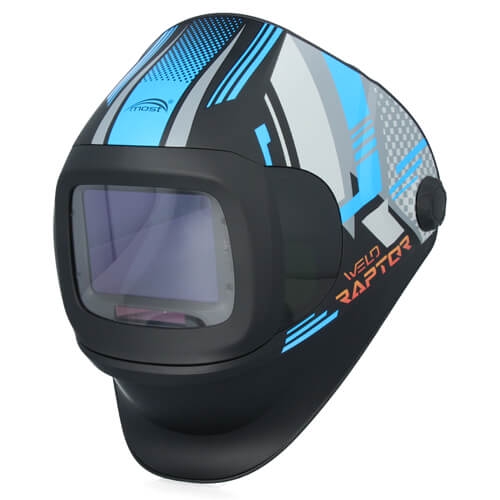

The welding mask MOST WELD RAPTOR is equipped with both a flip-up automatic filter module and a large protective visor. The modern, digitally controlled automatic filter features an LCD display and top optical classes. The side windows have filters with a shade level of 5, which increase the field of vision. The mask is suitable for all welding methods, and when the automatic filter cassette is lifted, it's ideal for precise grinding.
- Optical classes according to EN 379: 1/1/1/1.
- Large shading field: 107 x 75 mm
- Shading range: 5-8 / 9-13.
- Side protective windows with shade 5.
- Large protective visor.
- LCD digital display.
| Model | MOST WELD RAPTOR |
| Optical classes according to EN 379:2003 + A1:2009 | 1/1/1/1 |
| Field of vision | 107 x 75 mm |
| Number of detection sensors | 4 |
| Bright shade level | 4 |
| Shading range for cutting and welding | 5-8 / 9-13 |
| Shading adjustment | Digital on display |
| Delay adjustment | Yes / digital / from 0 to 10 |
| Sensitivity adjustment | Yes / digital / from 0 to 10 |
| Filter on/off | Automatic |
| Switching time from light to dark | 1/25 000 sec. (at 55°C) |
| Delay from dark to light position | 0.1~1.0 s |
| Low current range for TIG | ? 2 Amp (DC); ? 2 Amp (AC) |
| "Grind" function | Yes |
| Battery status indicator | Yes / digital |
| Power source | Solar cells and replaceable batteries 2 x CR2450 |
| Warranty | 2 years |
Match the safety equipment to the welding method:
| MIG/MAG Welding | TIG Welding | MMA Welding | Laser Welding | |
| Welding helmet MOST WELD RAPTOR AIR | ✓ |
✓ |
✓ |
○ |
✓ - recommended for the welding method (meets standards)
