  • Cooler FANCOOL 601 WA thumbnail

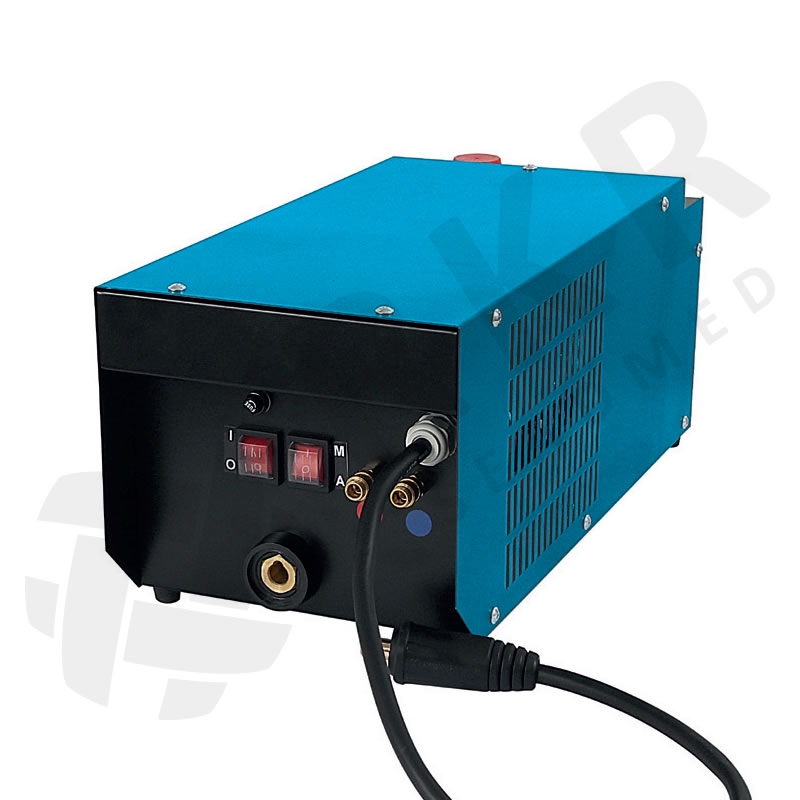

  • Cooler FANCOOL 601 WA

    Product code: 5003003805

    EAN: 5003003805

    823.36
    664.00 €(+VAT)

    Quantity (pcs):

    Description

    The Fancool 601-wa Most cooling system is used for cooling MIG/MAG and TIG welding torches. In many welding devices, the lack of liquid cooling for the torch is a significant limitation in operation. By connecting the cooler, we can use liquid-cooled welding torches, which significantly increases the efficiency of the welding device. The fancool cooler is not factory-filled with liquid for transport reasons. We recommend mOst cOOl 30 fluid.

    Model

    FANCOOL 601-WA MOST

    Tank

    max 3.0 l (factory empty)

    Cooling power (Q=1 l/min)

    0.55 kW

    Maximum pressure

    p = 0.35 MPa (3.5 bar)

    Maximum flow rate

    Q = 1 l/min

    Power supply

    230 V / 50-60 Hz

    Current consumption Imax

    1.3 A

    Protection rating

    IP23S

    Weight

    16.6 kg

    Dimensions

    244x525x290 mm

    Standard

    PN EN 60974-2

    Recognized current in automatic mode

    60 A (if welding is done at a lower current, switch to manual mode)

    Catalog number

    5003003805




    Specifications
    Weight (kg)
    16.87
